Description
Product Overview

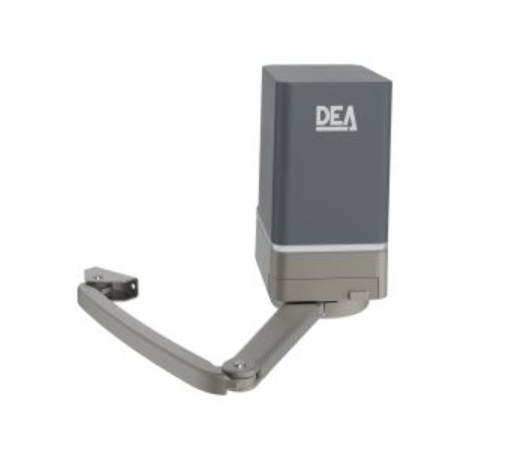

The DEA GEKO/X Electromechanical Operator is a next-generation swing gate automation system designed for residential and collective use. Capable of handling gates up to 3 meters in length and weighing up to 250 kg, the GEKO/X features significant improvements over its predecessor, including 30% faster operation, extended opening angles up to 120°, and enhanced weather protection with an ABS crankcase. Available in single (GEKO/X) and dual operator (GEKO/X/2) configurations, this 24V system combines powerful performance with smart connectivity through integrated NETLINK technology.
Product Description
The GEKO/X represents a major evolution in swing gate automation, featuring an upgraded gearbox that delivers opening times as fast as 8.5 seconds with the sliding arm or 12 seconds with the articulated arm. The operator uses advanced encoder technology for precise movement control and reliable obstacle detection. Its ABS crankcase provides superior weather resistance rated at IP44, while the protected release system and control board ensure long-term reliability. The system accommodates various arm types including articulated arms (GEKO/X/BA, GEKO/X/BLA) for standard installations and sliding arms (GEKO/X/BS) for space-constrained applications. Optional features include integrated battery backup, LED lighting strips, and external unlocking via the BLINDOS system with GEKO/SF cable release.
Key Features
-
30% Faster Operation: Upgraded gearbox delivers 8.5-12 second opening times at 90°, significantly faster than previous models.
-
Extended Opening Range: Opens gates up to 120° compared to standard 90°, providing greater flexibility.
-
Enhanced Weather Protection: ABS crankcase with IP44 rating and protected release system for improved durability.
-
24V Encoder Technology: Precise movement control with improved obstacle detection accuracy for enhanced safety.
-
Integrated NETLINK Compatible: Built-in NET24N control board enables smart management via DEAuser and DEAinstaller apps.
-
Flexible Arm Options: Compatible with articulated, sliding, and long arms for various installation requirements.
-
Battery Backup Ready: Designed to accommodate rechargeable battery kit for operation during power outages.
-
Optional LED Lighting: Available LED strip kit integration for enhanced visibility and aesthetics.
-
Slope Installation: Compatible with KIT CLIMB for installations on gradients up to 12%.
-
Quality Construction: Steel and bronze internal mechanisms ensure long-lasting reliability.
What's in the Box
- 1 x DEA GEKO/X Electromechanical Operator (GEKO/X) OR 2 x Operators (GEKO/X/2)
- 1 x NET24N Control Board (integrated)
- Fixing plates
- Mechanical stops
- Unlocking key (5 pcs available separately as KIT KEY GEKO)
-
Note: Arms sold separately - choose from GEKO/X/BA, GEKO/X/BS, GEKO/X/BL, or GEKO/X/BLA
Specifications
-
Power Supply: 230-240V ~ (50/60 Hz)
-
Motor Power Supply Voltage: 24V ⎓
-
Nominal Power: 110W
-
Maximum Power: 419W
-
Nominal Torque: 35Nm
-
Maximum Torque: 260Nm
-
Duty Cycle: 20 cycles/hour
-
Maximum Cycles in 24h: 60 cycles
-
Operating Temperature: -20°C to +50°C
-
90° Opening Time (Articulated Arm): 12 seconds
-
90° Opening Time (Sliding Arm): 8.5 seconds
-
Maximum Opening Angle: 120°
-
Nominal Speed: 2.15 rpm
-
Maximum Speed: 2.15 rpm
-
Weight with Packing: 11.6 kg (GEKO/X: 10.9kg, GEKO/X/2: 19.1kg)
-
Sound Pressure: < 70 dBA
-
Protection Level: IP44
-
Maximum Gate Length: 3m (with GEKO/X/BA), 1.75m (with GEKO/X/BS)
-
Maximum Gate Weight: 250 kg per leaf
-
Encoder: Yes (magnetic/digital)
-
Use Intensity: Residential and Collective
